ATI EXTENDED BRAIDED BRAKE LINES - REAR - NISSAN NAVARA D40 D23 NP300

COMPATIBILITY:

• NISSAN NAVARA D40 2005 - 2015
• NISSAN NAVARA D23/NP300 2015 - CURRENT

It is common for the brake lines of most vehicles to become tight when lifted above 2 inches, if not extended they are left prone to fatigue and failure. The ATI braided brake lines will not expand under high pressure and temperature, this allows a consistent line pressure giving a firmer and more efficient brake system operation, eliminating that 'spongy' pedal feel.

Features:

• Improved safety with enhanced performance
• Eliminates spongy pedal feel under heavy braking
• Can reduce braking distance during a panic stop
• Compatible with all approved brake fluids
• Abrasion and corrosion resistant
• ADR 42/04 compliant
• 5 year warranty

Specifications:

• Length: 530mm
• Hose Inner Material: PTFE Teflon
• Hose Outer Material: 304 stainless steel with PVC outer cover
• Fitting Material: Steel
• Temperature Range: -70°C to 260°C
• Inside Diameter: 3.2mm
• Outside Diameter: 7.5mm
• Maximum Working Pressure: 3500PSI
• Burst Pressure: 12550-13500PSI

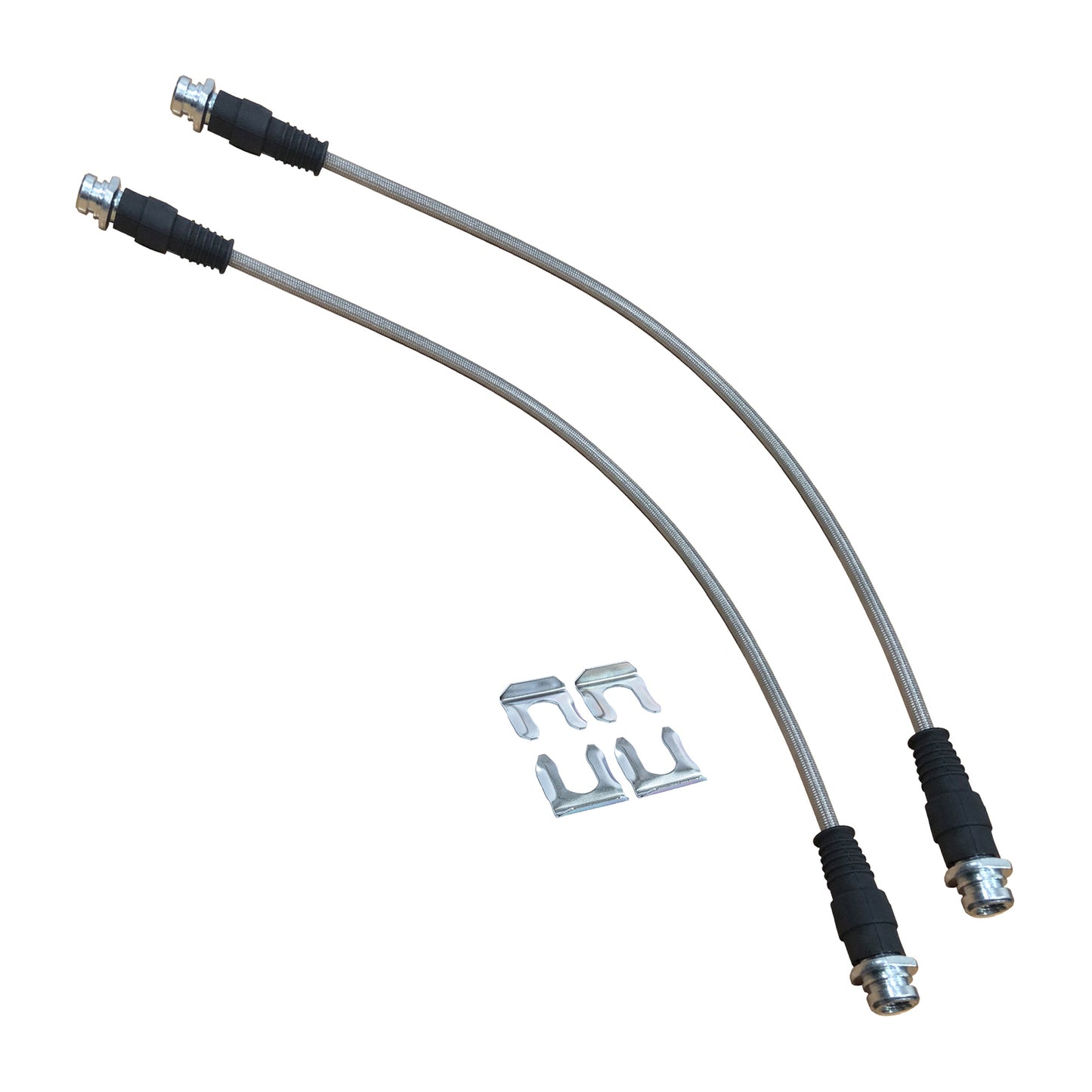

Kit Includes:

• 2 braided brake lines
• 4 brake line retaining clips
